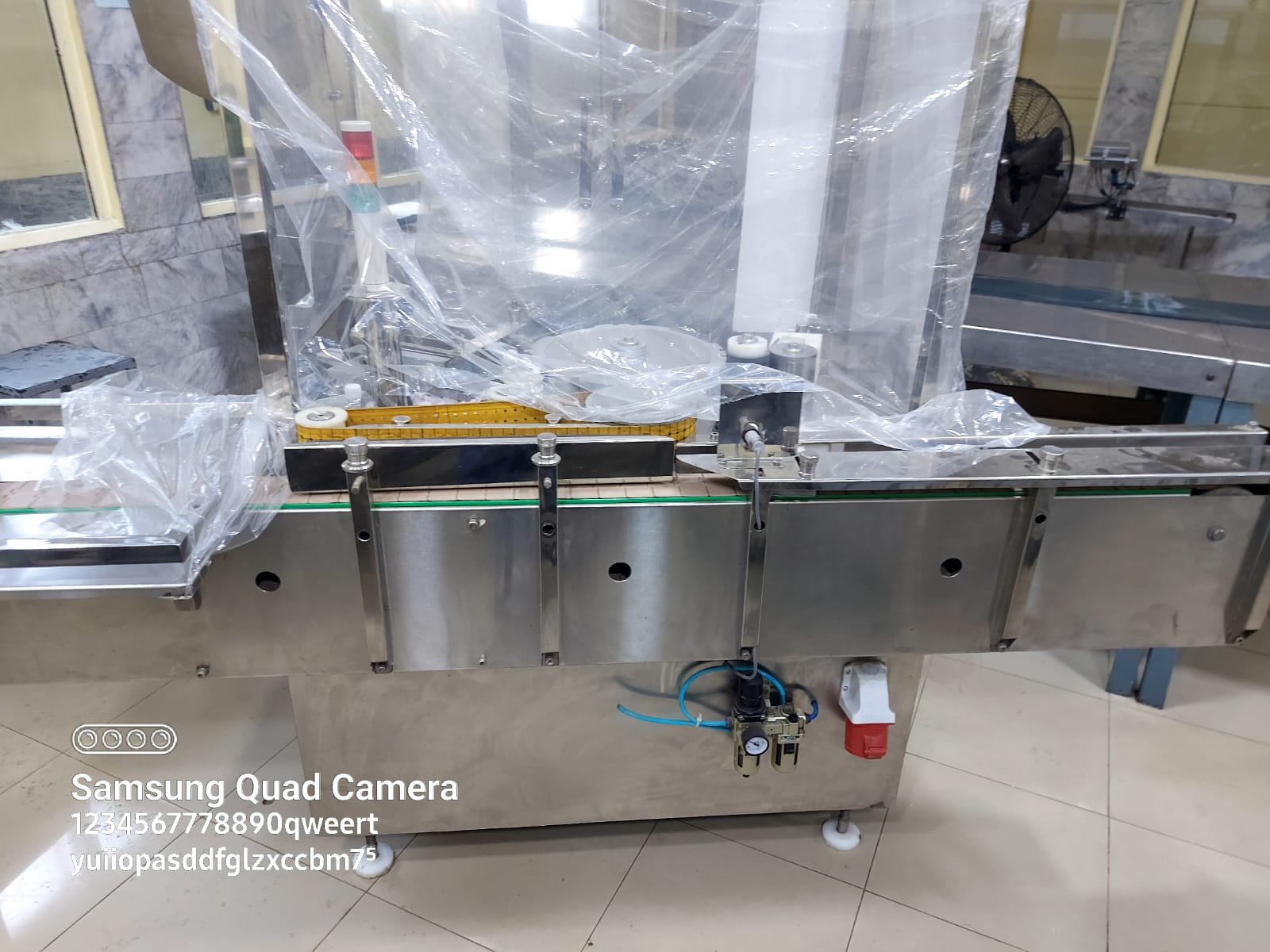

Cold Wet Glue Labelling Machine
Inline Cold Wet Glue Labeler Machine – The machine uses pre-cut paper labels and is suitable for labelling round bottles, jars, tin cans. and can label containers up to 100-120 per min.
This machine offers good efficiency, reliability, and cost-effectiveness, making it the perfect solution for your cost-effective labelling needs. The machine is designed and built to withstand the high-volume production requirements, providing long-lasting performance and minimal maintenance requirements.
Distinctive Features:
Our machine is equipped with several distinctive features that set it apart from the competition.
- “No Bottle No Label” system ensures that labels are applied only when containers are present, eliminating wastage and maximizing efficiency.
- Safety Cabinet for added safety and protection.
NOTE:
- Uses pre-cut paper labels only.
- The glue must match the surface to be bonded together.
Working Principle:

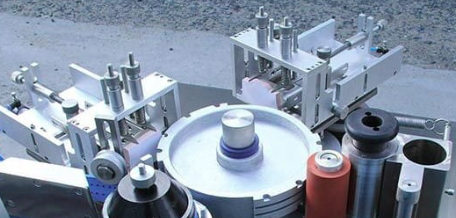

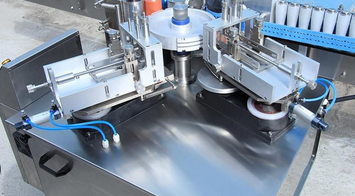

Labels are fed from label magazine to the Transfer Rotor with glue pasted on its transfer heads from Glue Feeder Roller. Label detaching fingers detach label from rotor and helps moving it to the vacuum transfer belt which then transfers it to the bottle/can/jar.
Robust all-stainless steel covered. Available in single, double label feed magazine configuration to match speed and customer requirement.
Main features:
- Vacuum Label Transferring. Vacuum to hold labels on pick-up cylinder with Transfer belt conveyor
- Stainless Steel cladding or hard chrome plating of all exposed parts to ensure long life and resistance against corrosion.
- “No Container, No Label” an electrical sensing device avoids wastage of labels. It also helps in keeping the unit neat and clean.
- Minimum change over time is required from one size of container or label to another.
- Quick change of speed or the adjustment of the complete system and synchronization is possible automatically with the help of % speed pot on operating panel.
- Suitable for OVERLAP LABELLING where the length of label is more than the circumference of the container.
- A highly efficient vacuum pump develops sufficient vacuum to hold labels on pick-up cylinder.
- Customized Label magazine.
- Single Label Magazine or Double Label Magazine.
- Variable Speed
- Safety Cabinet
Model | Detail |
Labeling speed | 60-100 pcs per min |
Label range | (H) 30~98mm x (L) 35~320mm |
Labeling accuracy | ±1mm |
Bottle diameter | ⌀ 30mm to ⌀ 100mm |
Voltage | 380V-420/50Hz or optional |
Power | 1.5KW |
Air consumption | 4-6 kgs x 18 Liter |
Dimension (L×W×H) | Approx. 3000 × 1000 ×1200mm |
Machine weight | Approximately 500kg |
- Labelling Bottles, Jars, Cans or round containers.
- PET, HDPE, Glass, Tin Can
